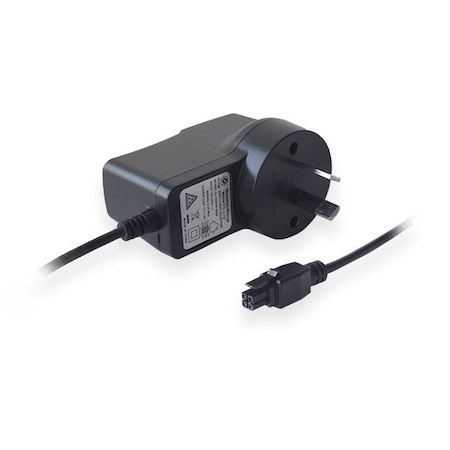

Teltonika 4 Pin Replacement AU Power Supply
Parameters
Parameter Rated value Absolute maximum
Input Voltage 100-240 VAC 90-264 VAC
Input Frequency 50/60 Hz 47-63 Hz
Input Current (@100-240VAC) 0.4 A -
Inrush Current (@100-240VAC) - 40 A
Output Voltage 9 VDC 8.55-9.45 VDC
Output Current 0-1 A -
Overshoot 5 % 10 %
Other parameters
Short-Circuit protection
Input protection Fuse
HIPOT (Dielectric Withstand Test) Primary to Secondary: AC3000V
MTBF 50000 h
Input connector AU
Output connector 4pin, 3mm pitch
Certification: IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013;
AS/NZS CISPR 32: 2015;
IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321:2008 Annex C
