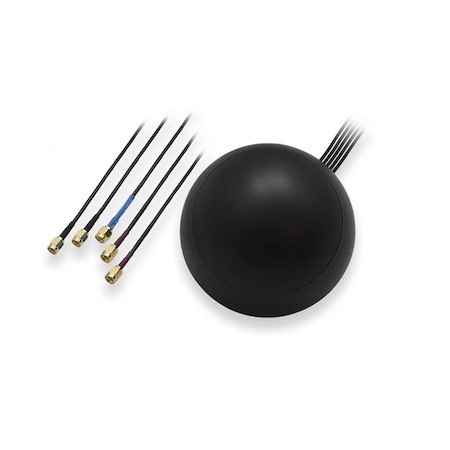

Teltonika Combo MIMO Mobile/GNSS/WiFi Roof SMA Antenna
GNSS Antenna
Frequency Range: 1575.42-1610 MHz
Polarization RHCP
Impedance 50 Ω
LNA Gain 28±2 dB
LNA Noise Figure < 1.5 dB
Supply Voltage 3-5 VDC
Current Consumption < 15 mA
LNA V.S.W.R <2.0
Connector SMA Male
LTE MIMO Antenna
Frequency Range: 698-960/1710-2690 MHz
Polarization Linear
Gain 3 dBi
V.S.W.R: <3.0
Impedance: 50 Ω
Connector: 2x SMA Male
WiFi MIMO Antenna
Frequency Range: 2400-2483.5/4900-5825 MHz
Polarization Linear
Gain 2 dBi
V.S.W.R: <2.5
Impedance: 50 Ω
Connector: 2x RP SMA Male
Mechanical/Environmental
Mounting Method: Screw
Radome Ingress Protection rating: IP67
Radome Material: ABS
Weight: <550g
Housing Dimensions: Ø 110x55 mm
Cable: 5x RG174, 3000 mm
RoHS Compliant: ✔
